SKU# 40-104

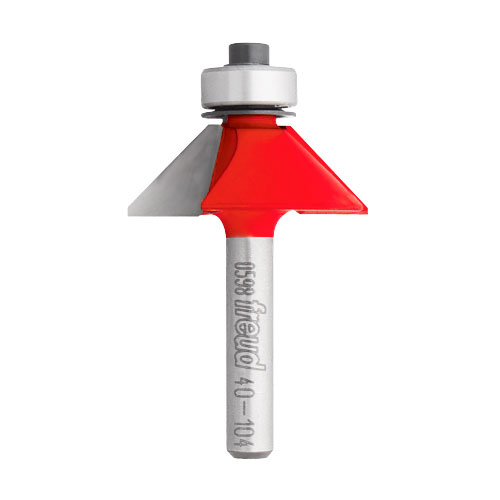

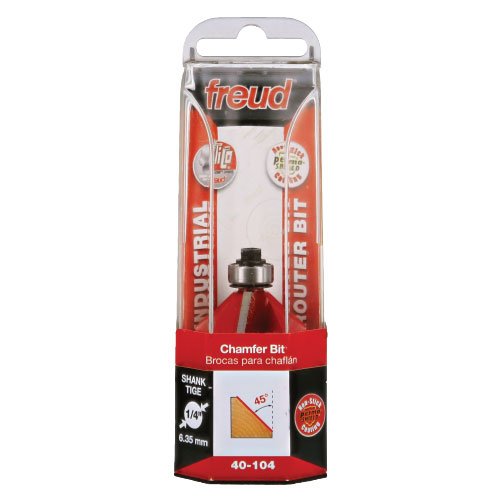

FREUD: CHAMFER BIT
UPC Code: 881599014599 FREUD: CHAMFER BIT CA$34.75/EAProduct Overview
The chamfer profile seems simple, but it is a great solution for lots of multiple-sided projects, joinery, and easing edges. Creates a uniform chamfer on the edge of any work piece to add character, while retaining crisp geometric lines. #40-094 makes 16-sided pieces and #40-098 makes 12-sided pieces. Routs hardwood, softwood, plywood and composites; use in hand-held or table-mounted portable routers. Ideal For: Eased or decorative edges, joinery.
Key Features
- Chamfer size easily adjusts by changing the height of the bit or moving the fence
- Cuts all composition materials, plywood, hardwood, and softwood
- Use on hand-held and table-mounted routers
- Freud Perma-SHIELD® Coating
Product Specifications
| Angle (d) |
45? |
| Bearing Dia. (B) |
1/2" |
| Brand |
Freud |
| Carbide Height (h) |
1/2" |
| Item # |
40-104 |
| Max RPM |
16000 |
| Number of Cutters |
2 |
| Overall Dia. (D) |
1-11/32" |
| Overall Length (H) |
2-3/16" |
| Shank Dia. (A) |
1/4" |
