SKU# 24601120SNPVC
RICHELIEU BARN DOOR TRACK INDUSTRIAL SATIN NICKEL 24601120SNPVC
RICHELIEU BARN DOOR TRACK CA$212.97/EAProduct Overview
The INDUSTRIAL 2 Decorative Sliding Hardware Kit is a barn door steel style system for wall-mounted wood doors weighing up to 176 lb (80 kg) each.
Key Features

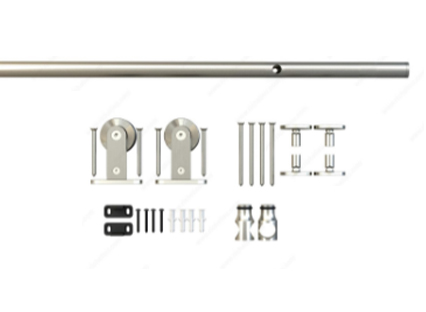

- Kit format includes hardware set for one door and track set 78 in (2 m) long
- Steel nickel finish
- Made for door thicknesses ranging from 1 3/8 in to 1 3/4 in (35 mm to 45 mm)
- Two-part floor guide that does not require a groove at the bottom of the door
- Direct mount wood screw lag bolt for a simple installation
- Couple available for biparting applications
Product Specifications
| Brand |
Onward |
| Detailed Door Movement |
Barn door |
| Door Height |
3 050 mm |
| Door Installation |
Top Hung |
| Door Material |
Wood |
| Door Movement |
Straight Sliding |
| Door Projection |
71 mm |
| Door Thickness |
35 to 45 mm |
| Door Width |
24 to 40 in |
| Finish |
Satin Nickel |
| Function |
Sliding Door |
| Groove Depth |
20 mm |
| Groove Width at the Bottom of Door |
7 mm |
| Height Clearance |
108 mm |
| Material |
Steel |
| Model # |
24601120SNPVC |
| Overall Length |
2 m |
| Product Type |
2 m Kit |
| Roller Position |
Upper |
| Roller Type |
Ball Bearing |
| Running Track Fixing |
Surface Mount |
| Stopper |
Two |
| Style |
Contemporary |
| Track Material |
Steel |
| Track Mounting |
Wall Mount |
| Track type |
Tube |
| Weight Capacity per Door |
15 to 80 kg |
