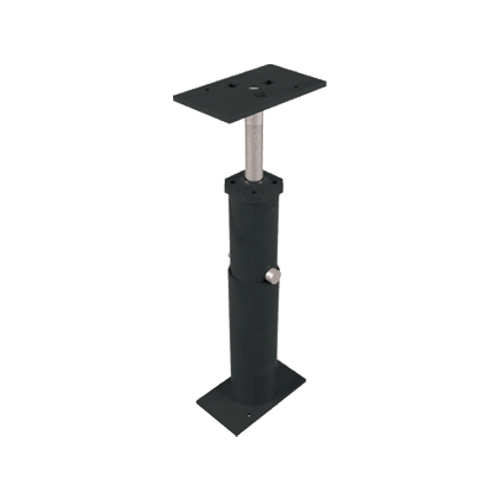

SKU# 1626T
TELEPOST:1'6"-2'0" JP24, 12320lbs factored
UPC Code: 773029182469 TELEPOST:1'6"-2'0" JP24, CA$70.14/EAProduct Overview
Adjustable Support Posts can be used to support carport roofs and beams carrying weights of up to two wood-frame floors, as long as the length of the joists carried by the beams does not exceed 16' and the live load on any level does not exceed 50 lbs/ft².
Key Features
- Includes 3-gauge steel plates
- Light-duty adjustable steel jack post
- Black paint finish for top and bottom plates
- Conforms to NBC 2015, Sentence 9.17.3.4.(1) and to CAN/CGSB-7.2-94
Product Specifications
| Adjustable Height |
19-1/2" - 24" |
| Brand |
Mitek |
| Factored Resistance² |
12,320 lbs |
| Material |
Steel |
| Product Type |
Support Post |
| Series |
JP |
| Tube Size |
2-3/4" |
